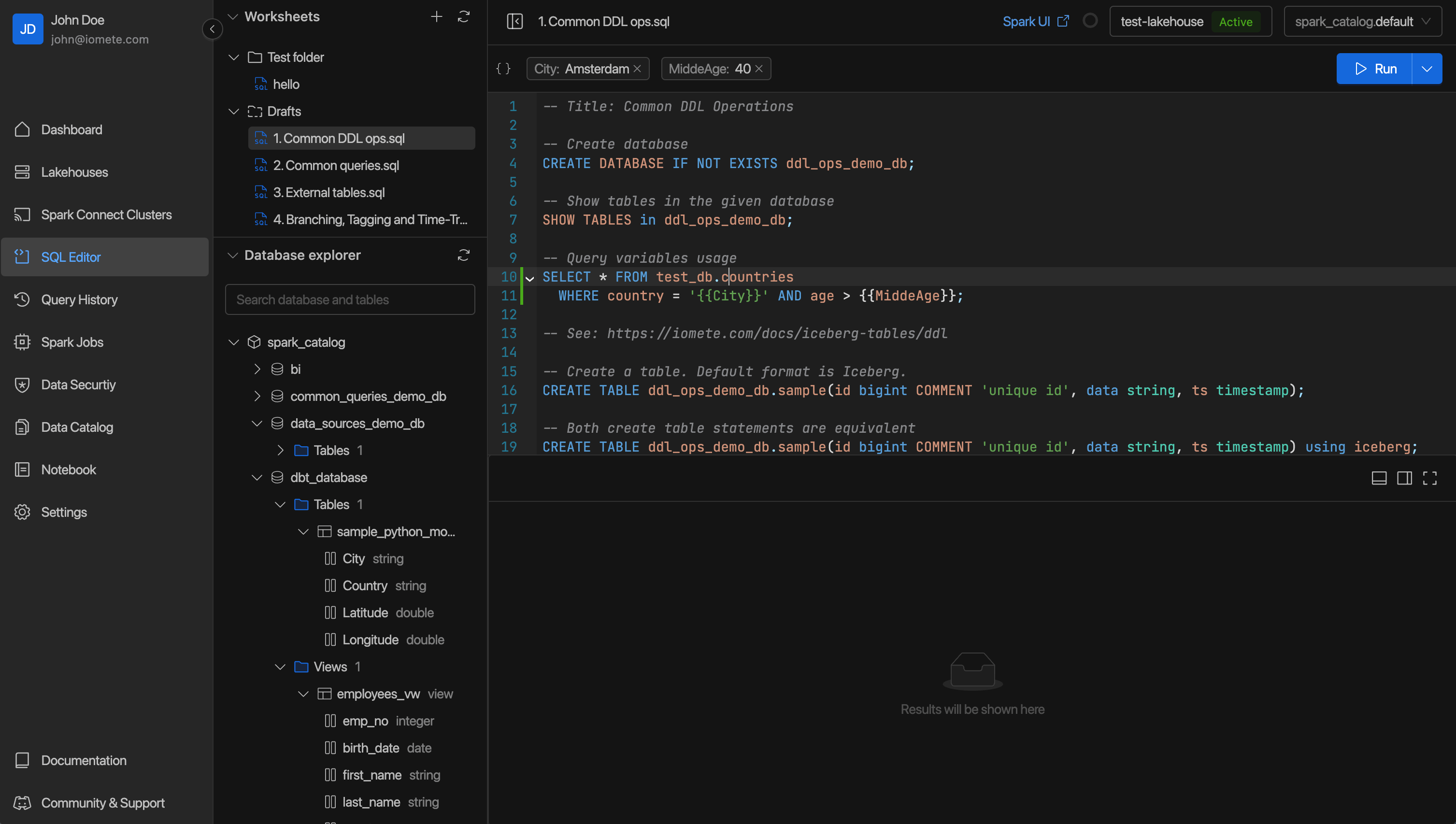

SQL Editor overview

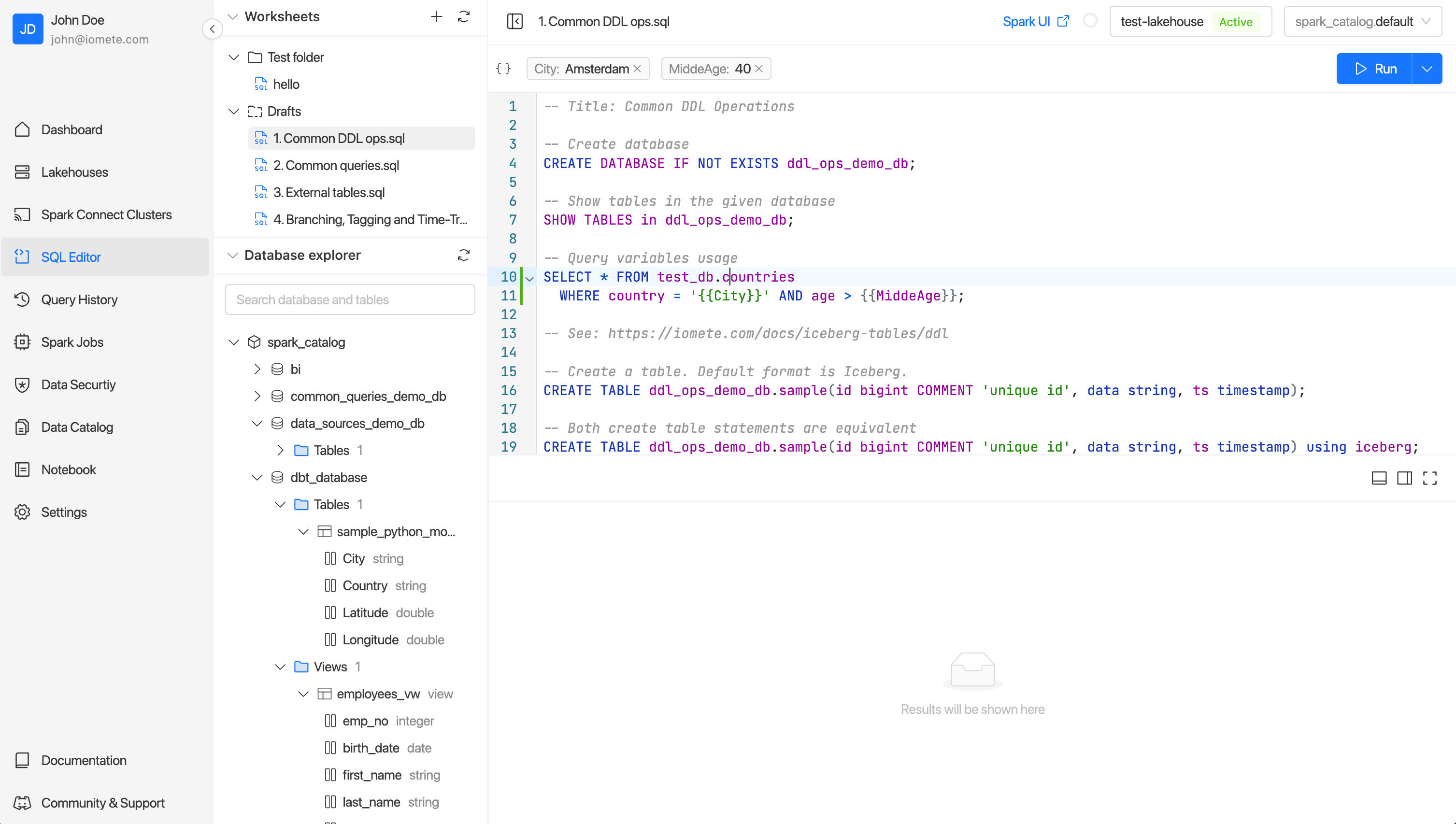

The SQL Editor is where you run queries on your dataset and get results.



The worksheet is a document that stores SQL queries. These worksheets are organized in folders, and the system automatically creates a default Draft folder. In this folder, you'll find worksheets with helpful SQL query hints to make writing queries easier.

You can create custom folders for better organization. Folders can be deleted, renamed, and modified, except for the system-generated 'Draft' folder, which remains fixed. Within folders, you have the flexibility to create, duplicate, delete, rename, and move worksheets.

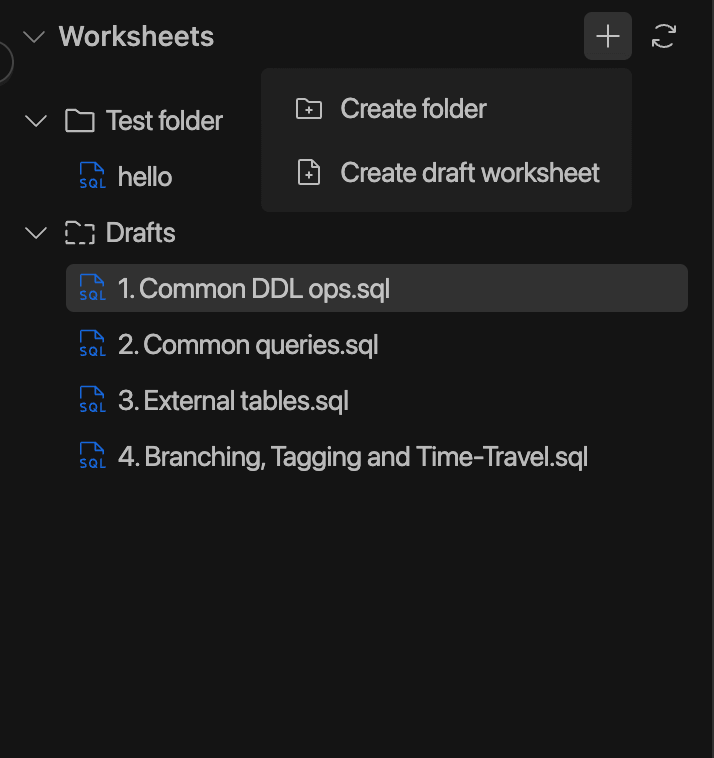

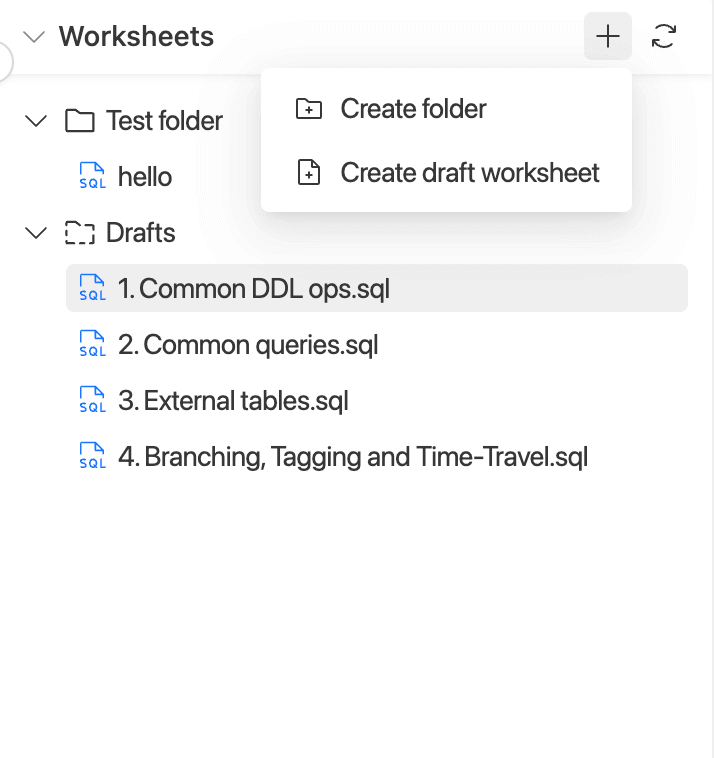

SQL Editor - Folder create | IOMETESQL Editor - Folder create | IOMETE

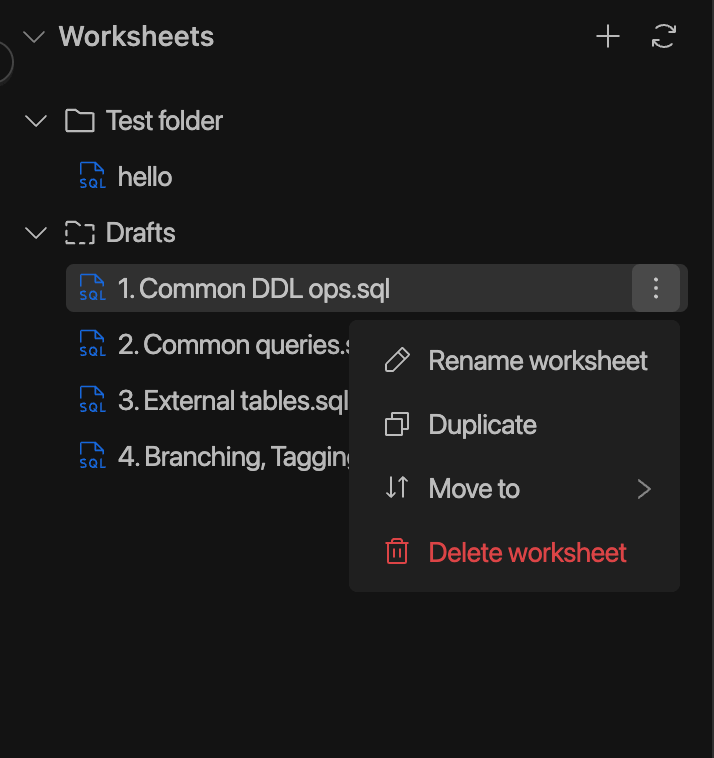

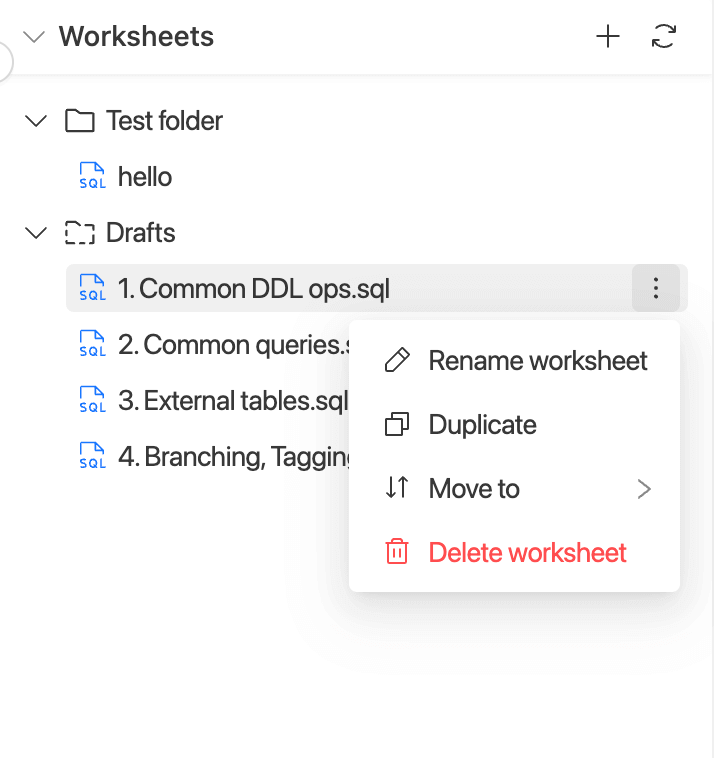

SQL Editor - Worksheet menu | IOMETESQL Editor - Worksheet menu | IOMETE

Database explorer

Database explorer panel is used to explore your database objects, which includes namespaces, tables, views, and their columns (even complex columns), and partitions.

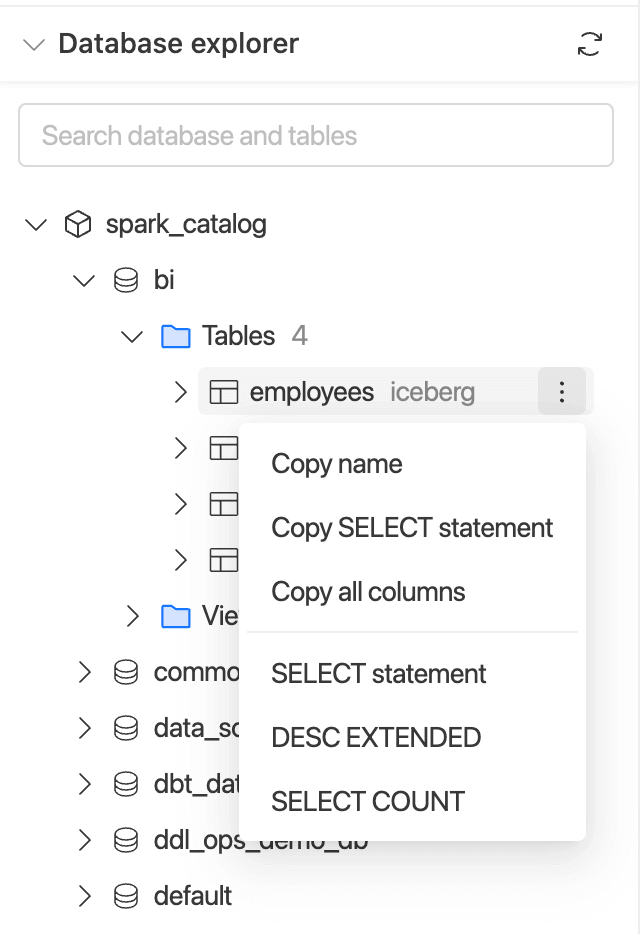

To view database objects, expand a database. Each object in the database explorer has a corresponding options menu . You can also open the menu by right-clicking on the item.

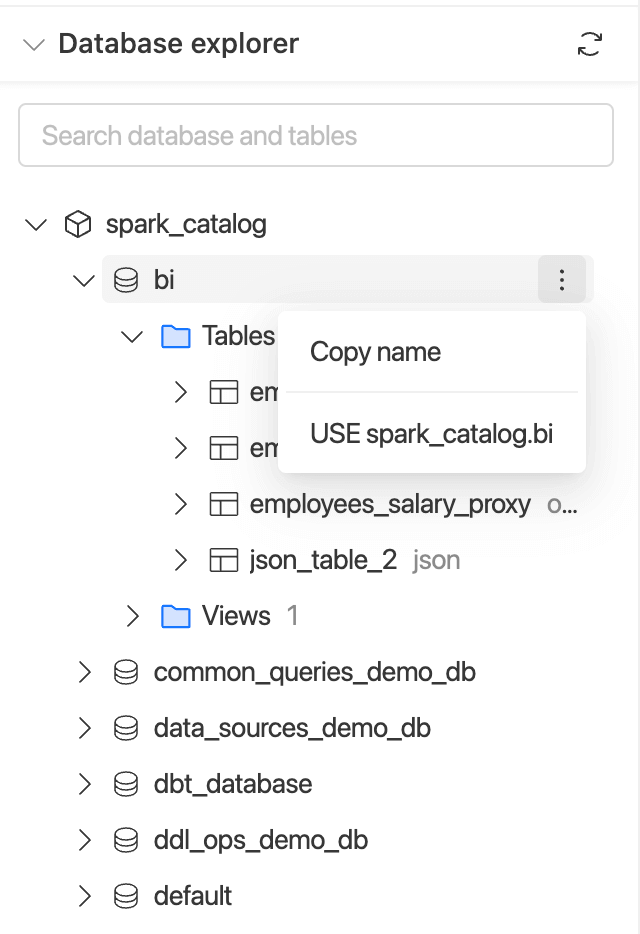

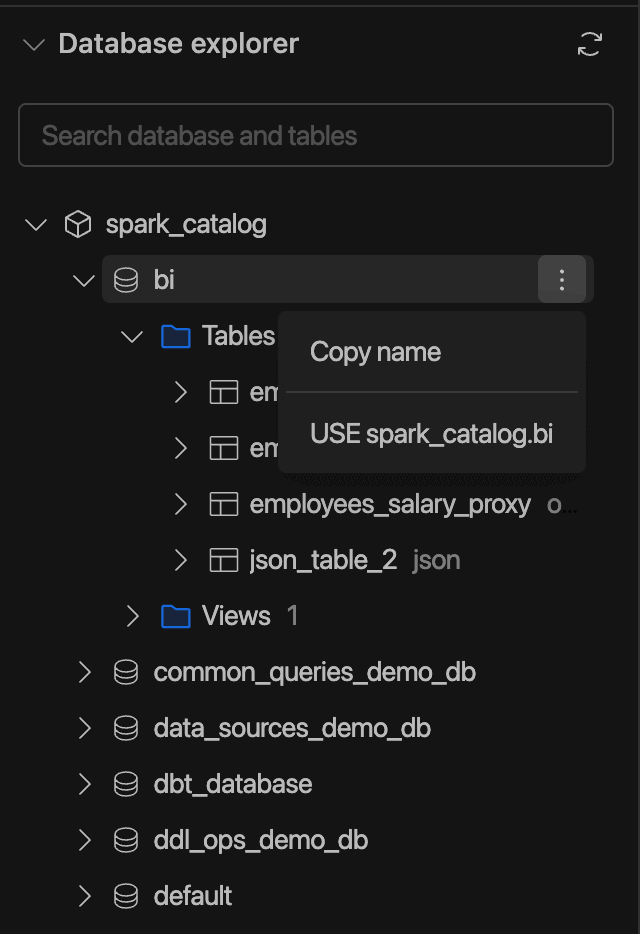

SQL Editor - Database menu | IOMETESQL Editor - Database menu | IOMETE

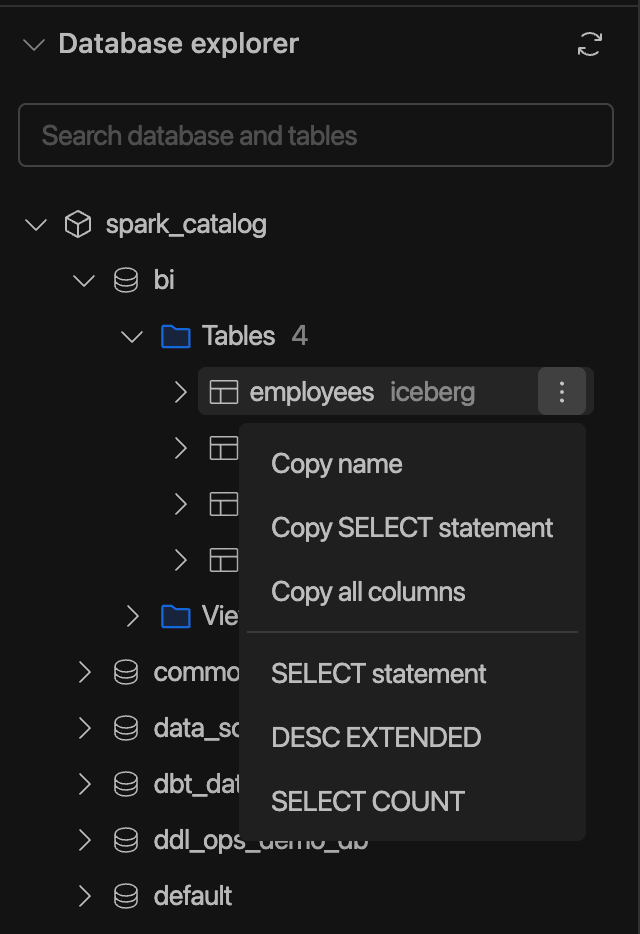

SQL Editor - Table menu | IOMETESQL Editor - Table menu | IOMETE

Querying data


Before running a query you must select a running Lakehouse and Database.

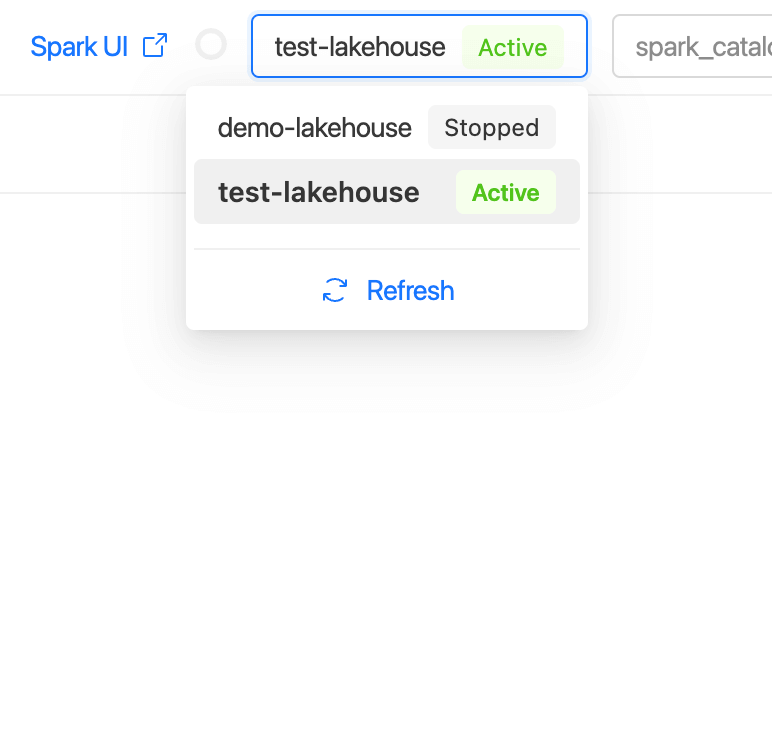

To select (or change) the Running lakehouse for a worksheet, click the Select Lakehouse dropdown in the upper-right corner of the query editor.

To select (or change) the current database for a worksheet, click the Select Database dropdown in the upper-right corner of the query editor. You can also select catalog only.

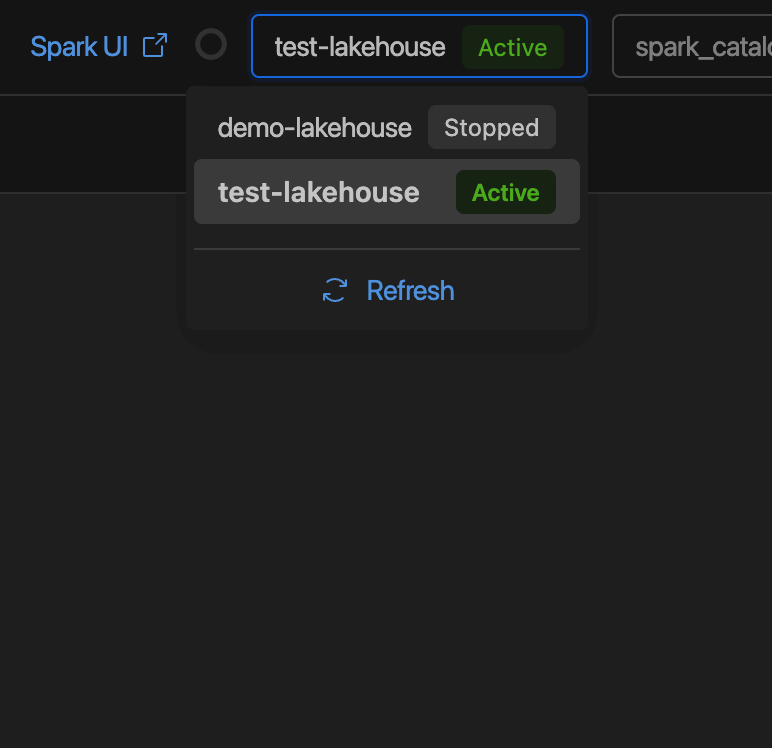

SQL Editor - Lakehouse select | IOMETESQL Editor - Lakehouse select | IOMETE

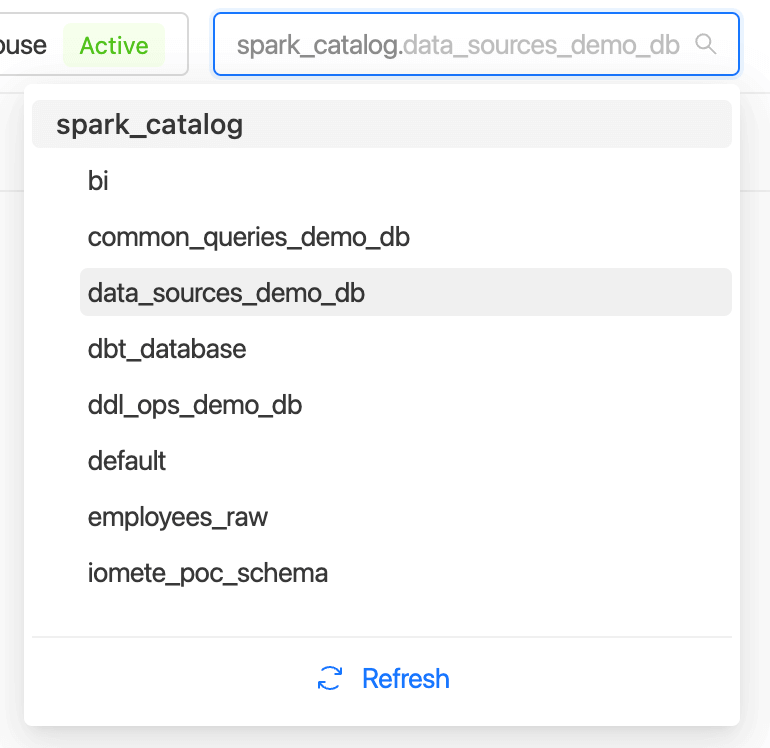

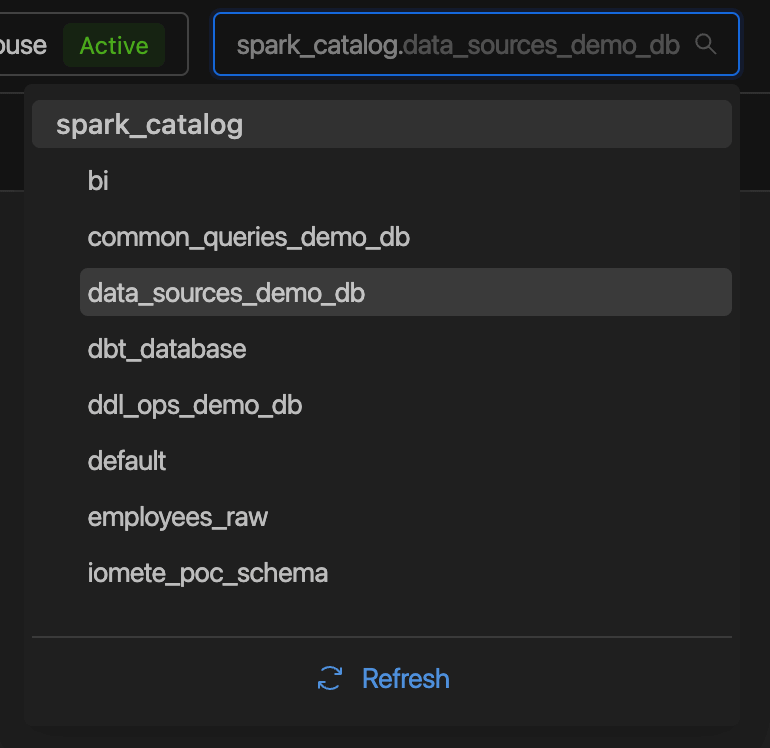

SQL Editor - Database select | IOMETESQL Editor - Database select | IOMETE

Write query

As you enter your script in the query editor, the autocomplete feature suggests:

  • Query syntax keywords such as SQL functions or aliases.
  • Values that match table or column names within a schema.

IOMETE tracks table aliases and suggests them as autocomplete options. For example, if you execute a query using employees as e or employees e as an alias, the next time you type e, the autocomplete feature suggests the alias as an option.

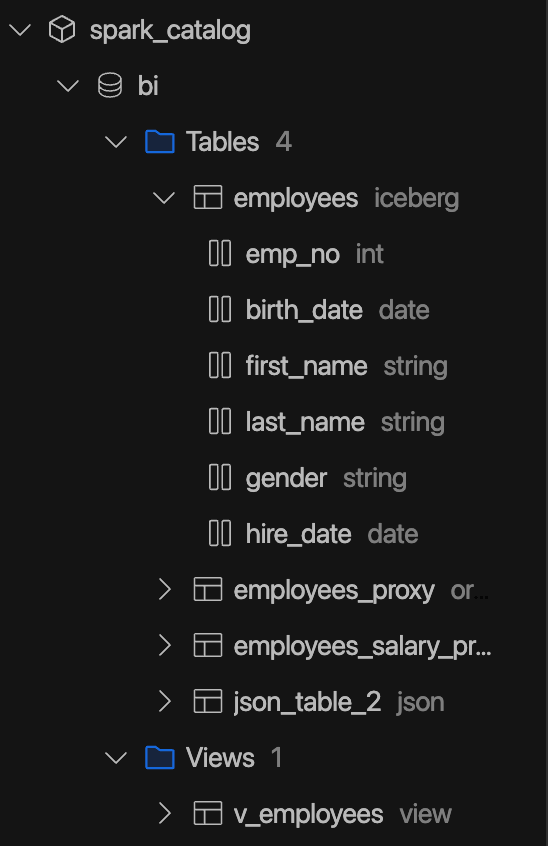

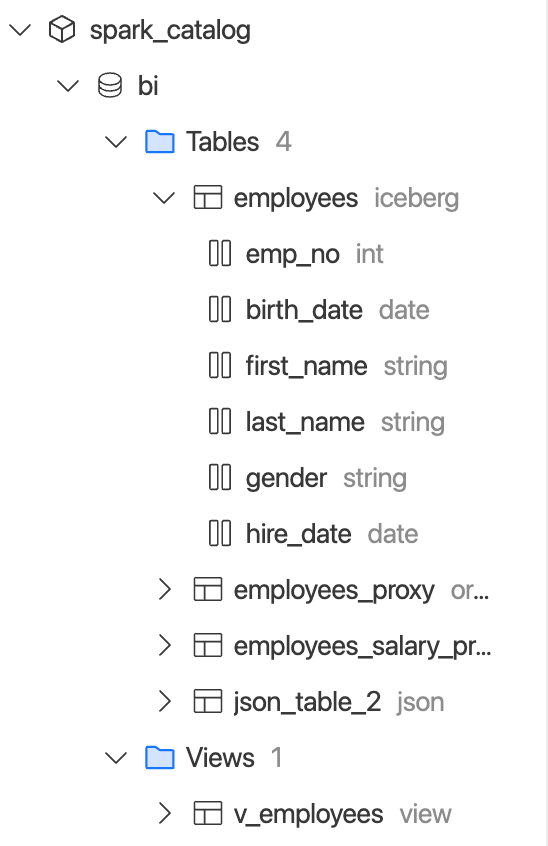

SQL Editor - Table columns | IOMETESQL Editor - Table columns | IOMETE

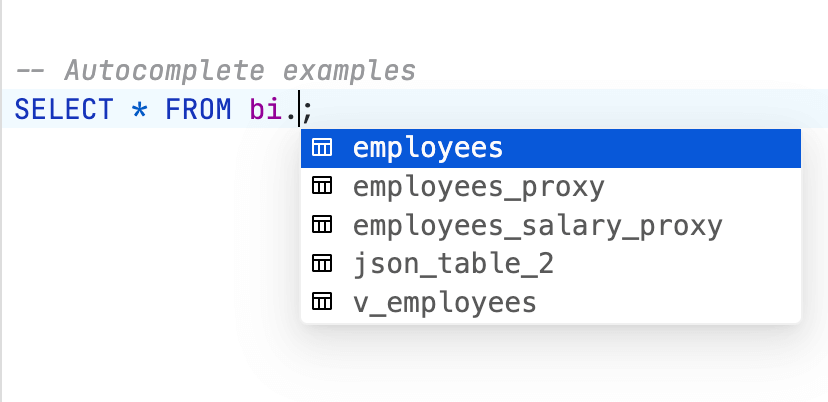

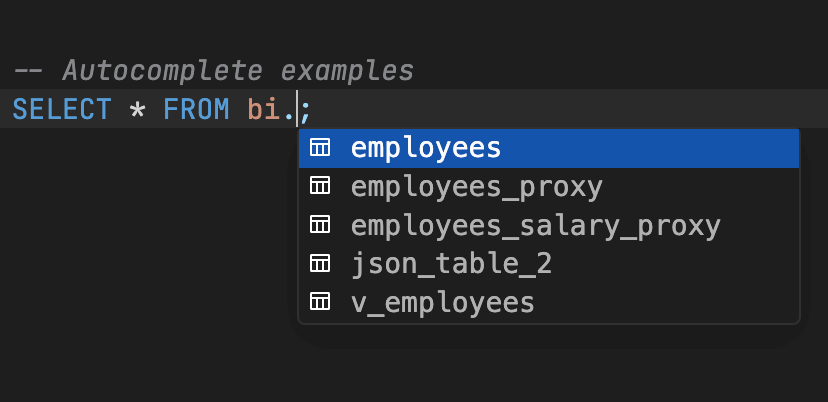

SQL Editor - Autocomplete tables | IOMETESQL Editor - Autocomplete tables | IOMETE

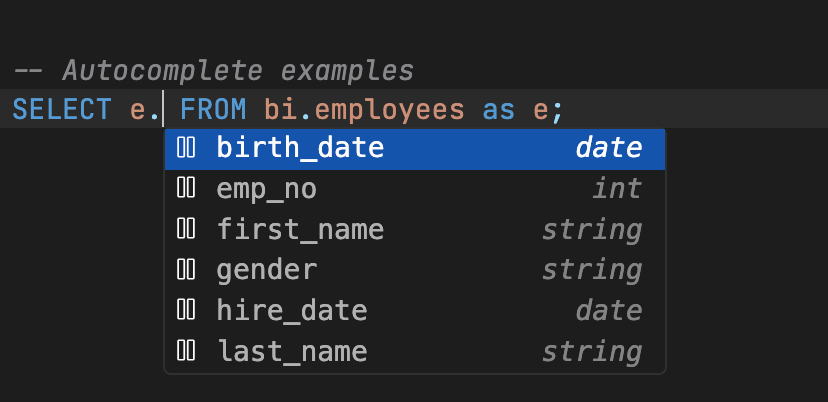

SQL Editor - Autocomplete columns | IOMETESQL Editor - Autocomplete columns | IOMETE
Open autocomplete with

⌘+Space (Mac) or Ctrl+Space (Windows/Linux).

Query Variables

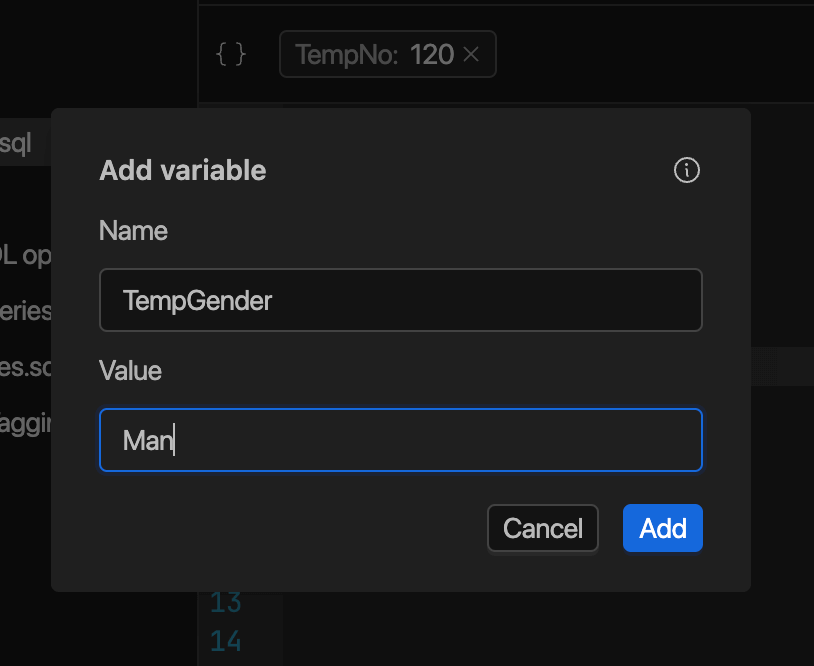

Use variables in your SQL queries by wrapping them in double curly braces, like {{id}} . It is necessary to declare a variable before using it. Specifying an expression for the initial value for the variable.After declaring the variable, you can see it in autocomplete.

SQL Editor - Variable create | IOMETESQL Editor - Variable create | IOMETE

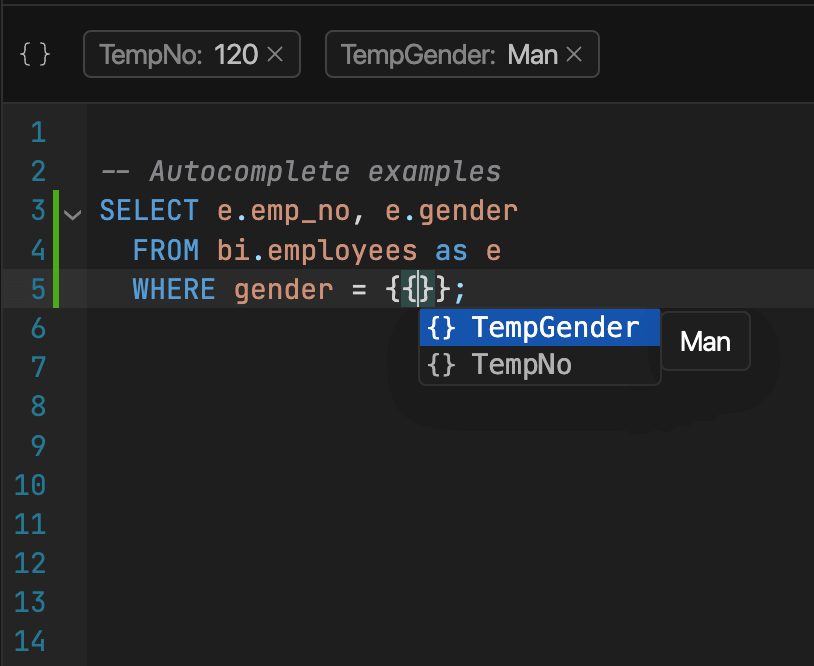

SQL Editor - Variable autocomplete | IOMETESQL Editor - Variable autocomplete | IOMETE

Run query


Currently, you can run only a single query

Using the query editor, run a single query as follows:

  • Click Run button
  • ⌘+Enter (Mac)
  • Ctrl+Enter (Windows)

Query Result


Up to 10,000 rows can be displayed in the results.

The query result includes the following information:

  • The duration of the query execution.
  • The status of the query execution.
  • The number of rows.
  • Result table
SQL Editor - Query result | IOMETESQL Editor - Query result | IOMETE

Download or Share Results

To download your results as a .csv file, click the .csv button.

To share your results as a link, click the Share button to copy the link.

Results as CHART

To show result as chart click the Chart button.

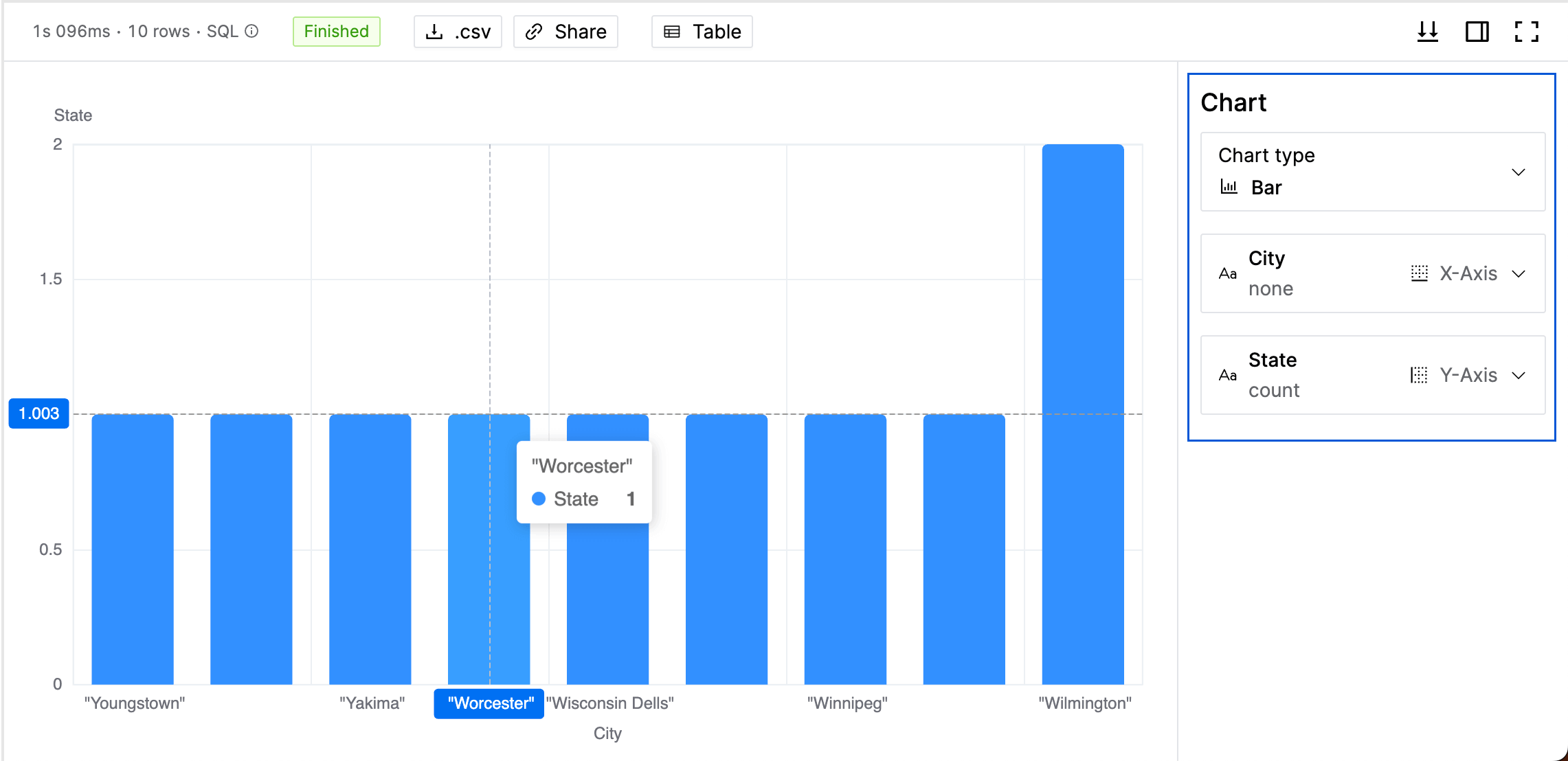

SQL Editor - Query result chart | IOMETESQL Editor - Query result chart | IOMETE

You can customize the chart using filtering options on the right side.

Using Sort and Filters

You can use column sorting and filtering. Hover over columns to view the filter icon and click. When clicking the filter icon, you can see available filters.

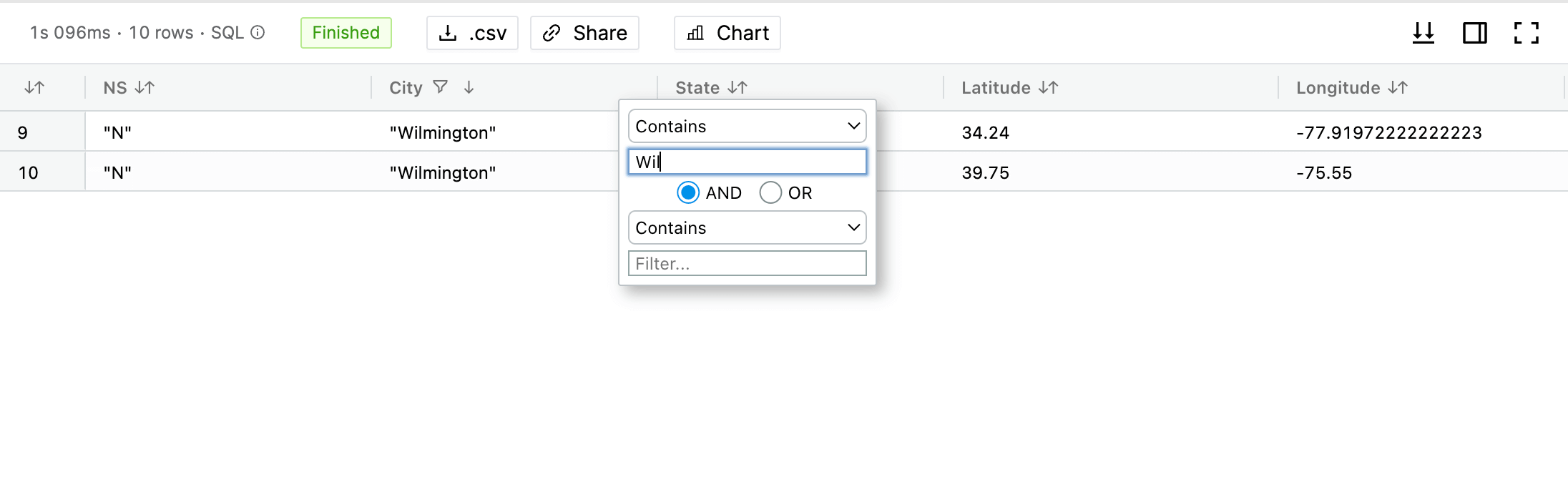

SQL Editor - Query result filter | IOMETESQL Editor - Query result filter | IOMETE
SQL Editor - Query result filter | IOMETESQL Editor - Query result filter | IOMETE

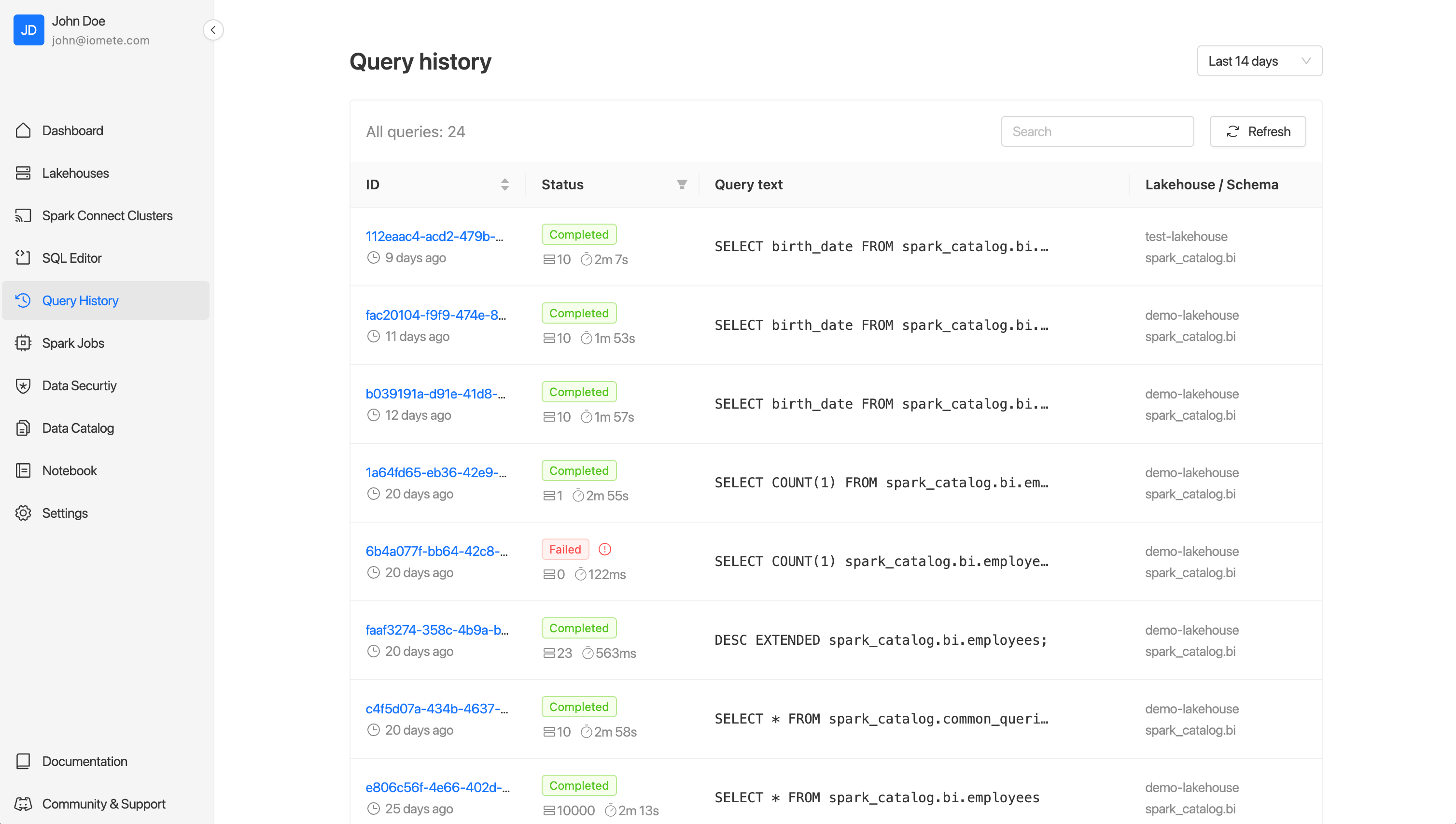

Query Histories

When you run a query, it is tracked as a new item in the SQL history. You can use the SQL history to go back to previous queries so that you can see query results and open queries in the active worksheet.

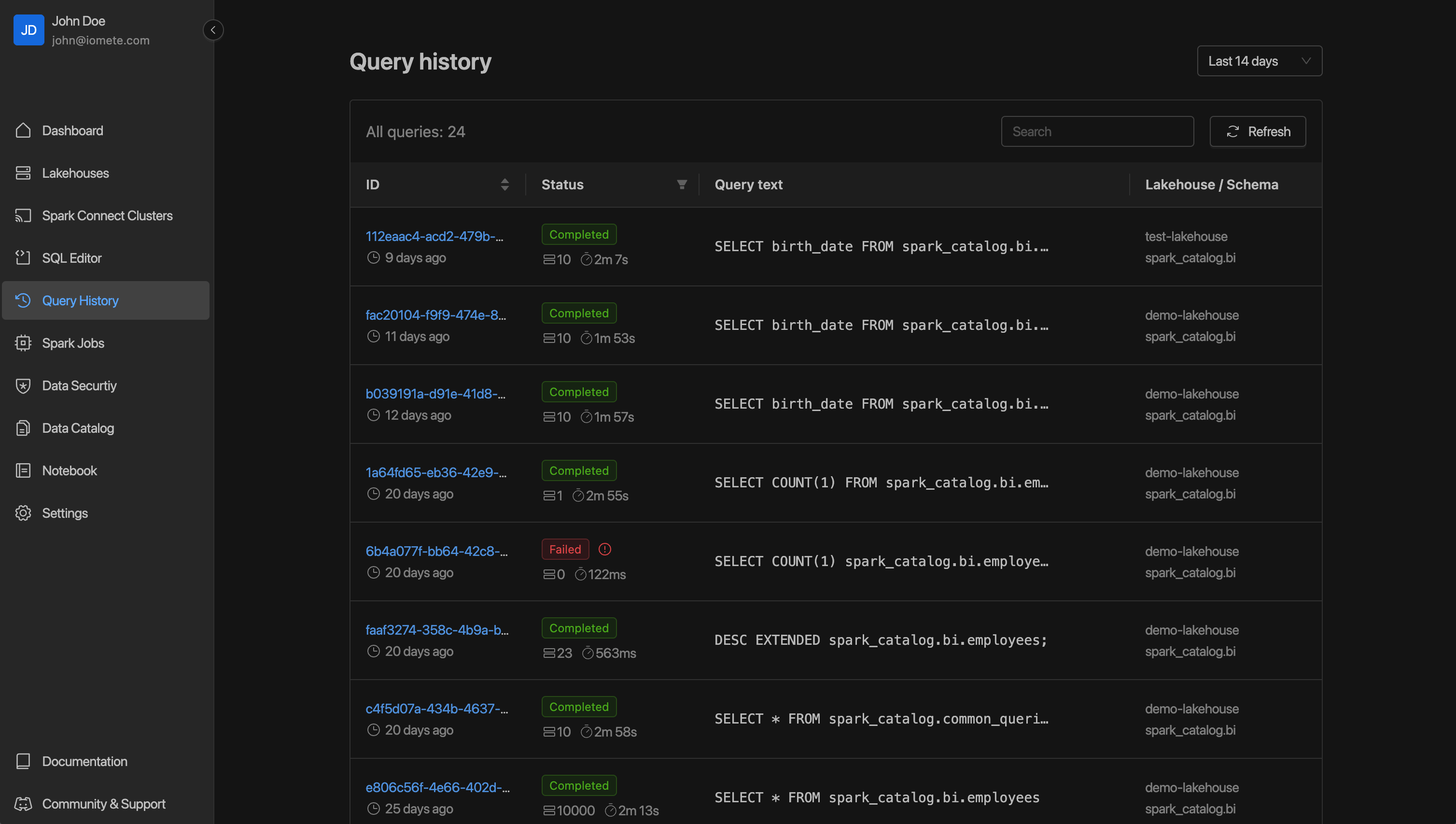

SQL Editor - Query histories | IOMETESQL Editor - Query histories | IOMETE
