DBeaver

DBeaver is a cross-platform database tool. It connects to IOMETE over the Arrow Flight SQL protocol using a JDBC driver. You can choose between two Arrow Flight drivers, and both work the same way:

  • IOMETE custom build: adds proxy support, a connection-level query timeout, and named parameters. See the Arrow Flight SQL JDBC Driver guide for the details.
  • Apache Arrow Flight SQL JDBC driver: the standard upstream build, also fully compatible.

There's also a legacy Hive JDBC driver that connects over the deprecated HiveServer2 protocol. It's slower and has known compatibility issues with schema selection and catalog names. Use Arrow Flight SQL unless you have a specific reason to use the Hive driver.

The steps below apply to either Arrow Flight driver.

Downloading the Driver​

DBeaver needs the JDBC driver JAR on disk before it can connect to IOMETE. Download the IOMETE custom build from the iomete-artifacts GitHub repository, where the files follow the naming convention flight-sql-jdbc-driver-<upstream>-iomete.<release>.jar.

To use the standard upstream driver instead, download it from the Apache Arrow releases page.

Registering the Driver in DBeaver​

DBeaver doesn't ship with the Arrow Flight SQL driver. Register the JAR once, then reuse it for every IOMETE connection.

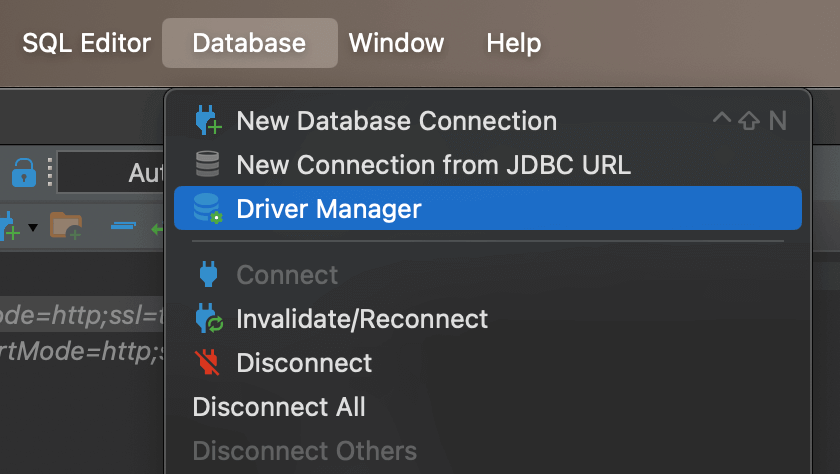

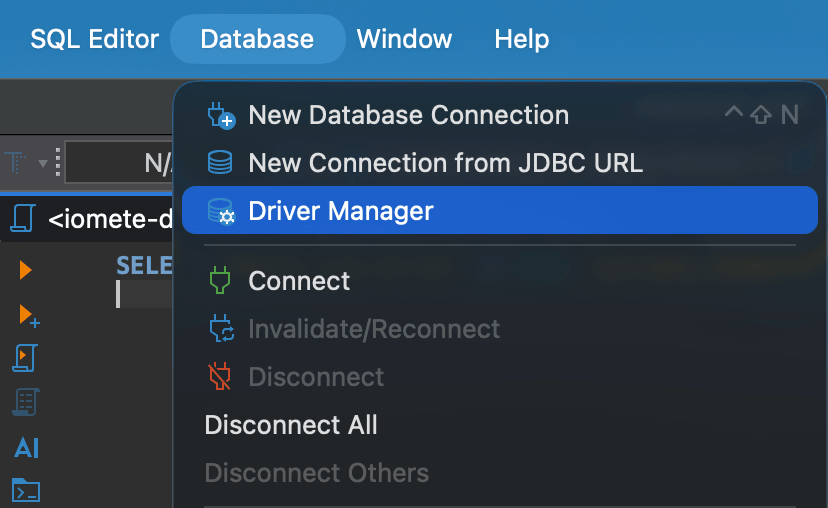

  1. Open DBeaver and go to Database → Driver Manager.

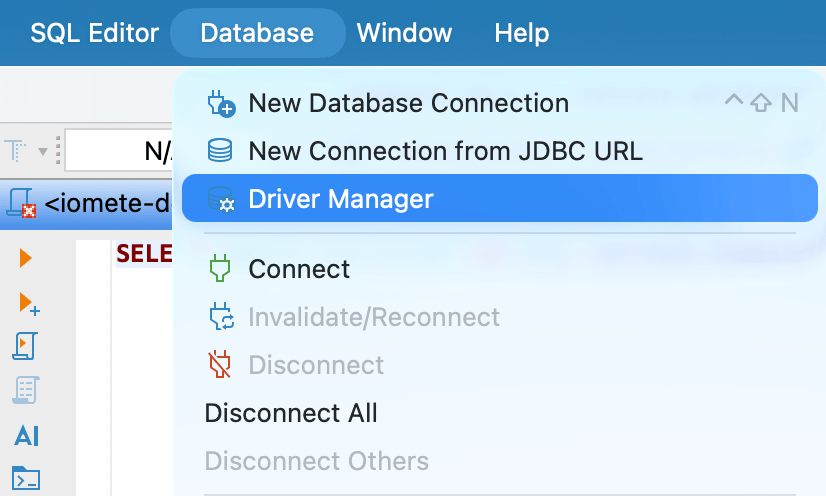

    Opening Driver Manager from the Database menu | IOMETEOpening Driver Manager from the Database menu | IOMETE

  2. Click New to create a driver.

  3. On the Libraries tab, click Add File and select the JAR you downloaded. Then click Find Class to let DBeaver resolve the driver class.

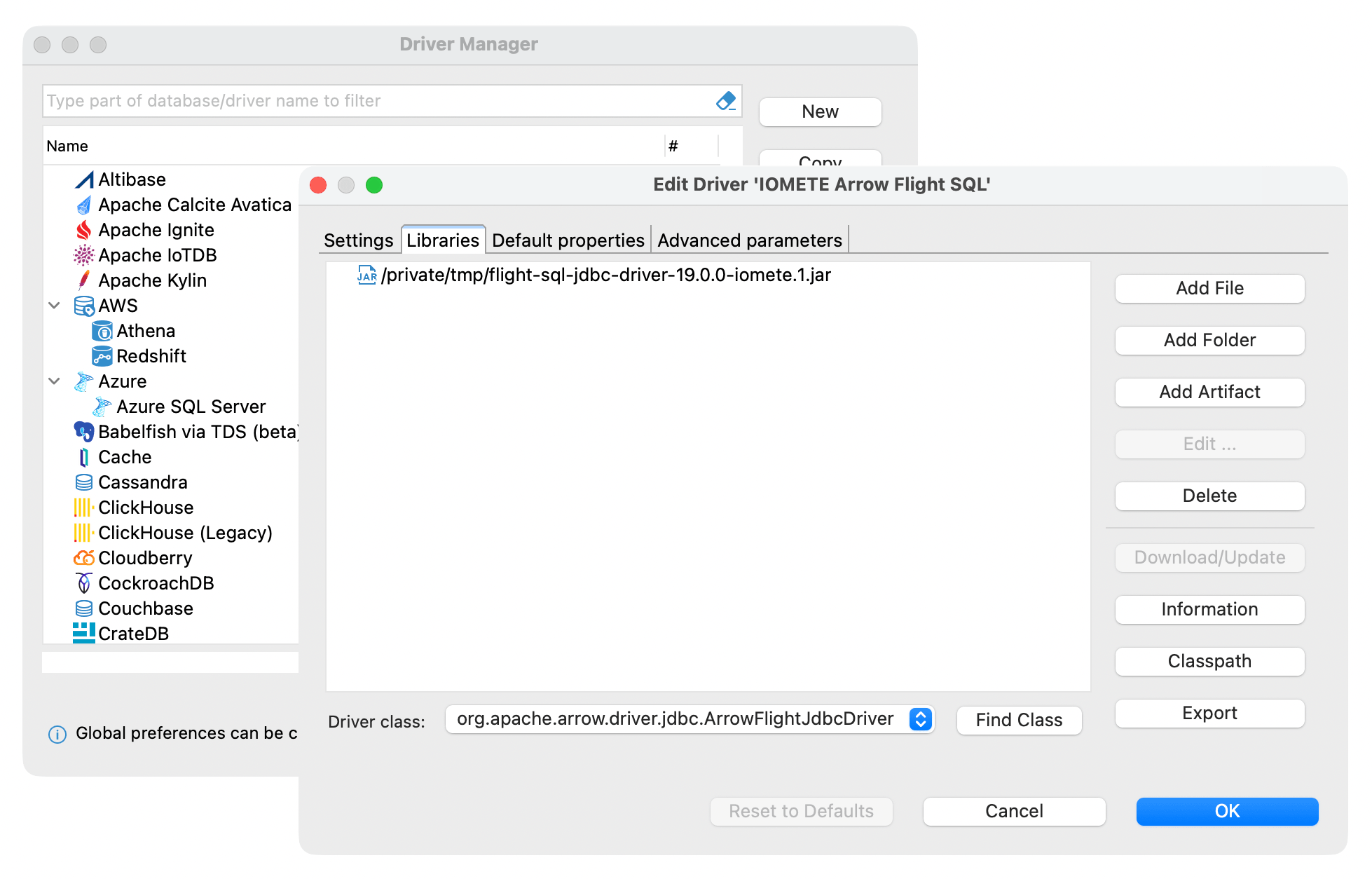

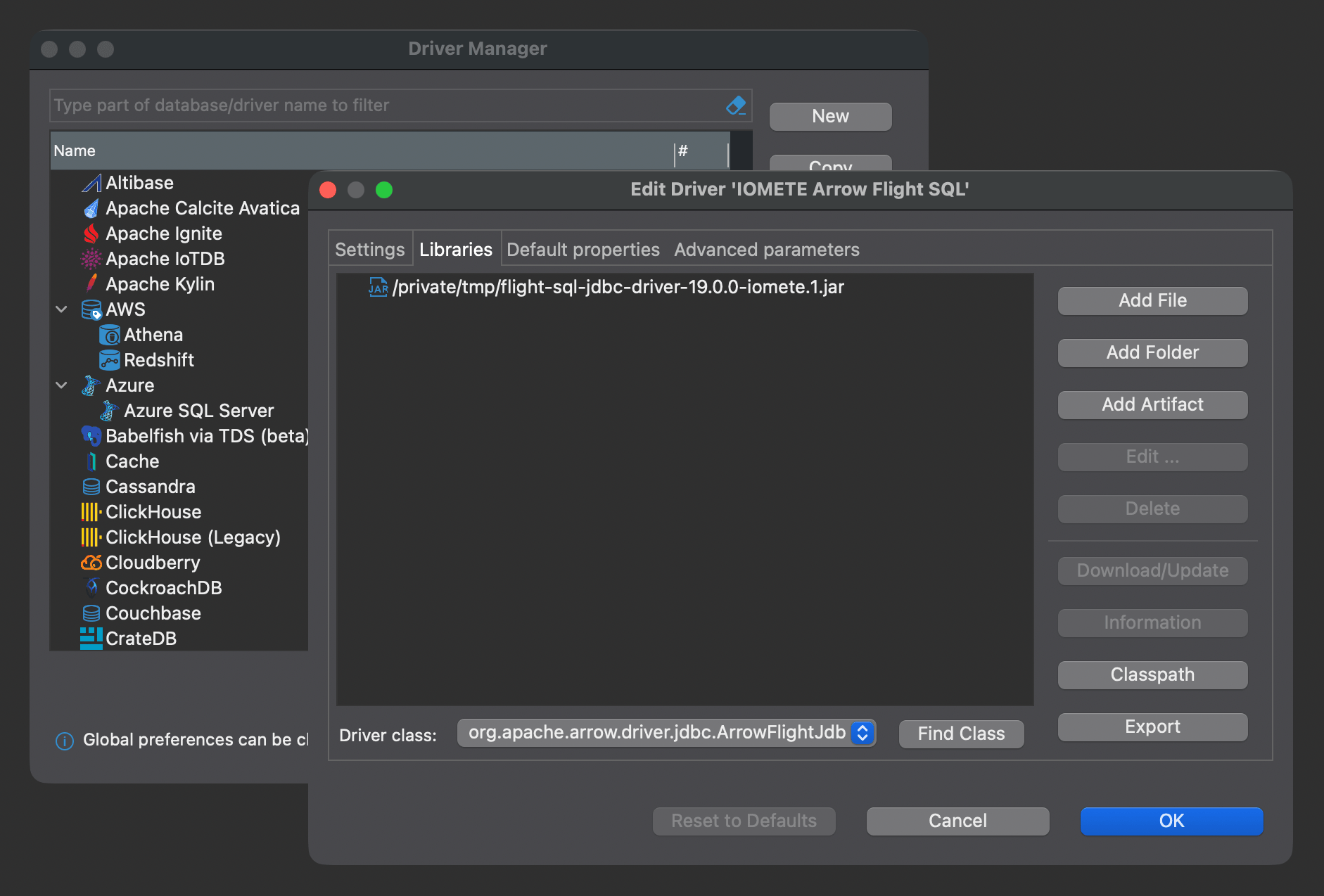

    Libraries tab with the Arrow Flight SQL JDBC JAR and resolved driver class | IOMETELibraries tab with the Arrow Flight SQL JDBC JAR and resolved driver class | IOMETE

  4. Switch to the Settings tab and confirm:

    • Driver Name: IOMETE Arrow Flight SQL
    • Driver Type: Generic
    • Class Name: org.apache.arrow.driver.jdbc.ArrowFlightJdbcDriver

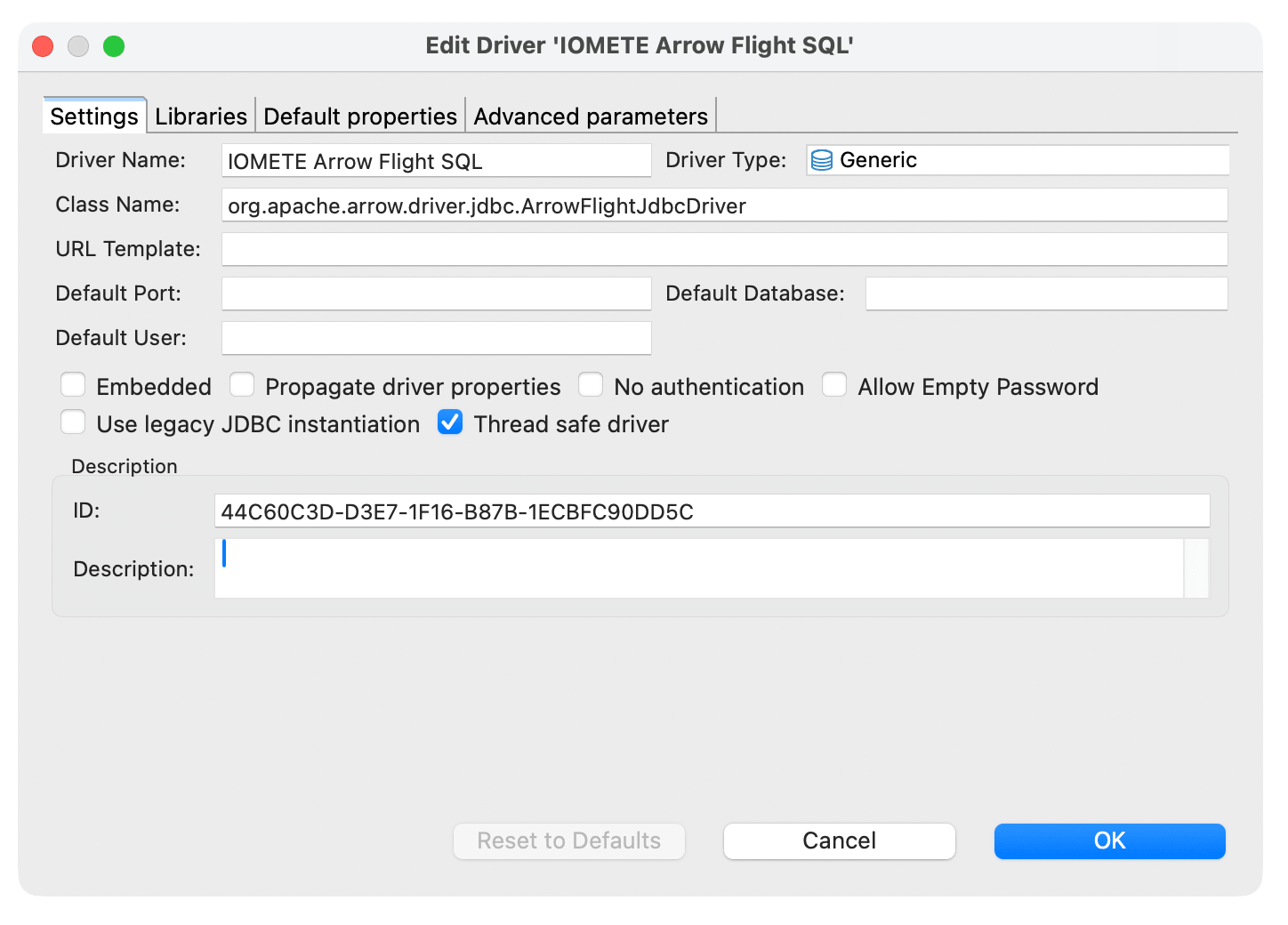

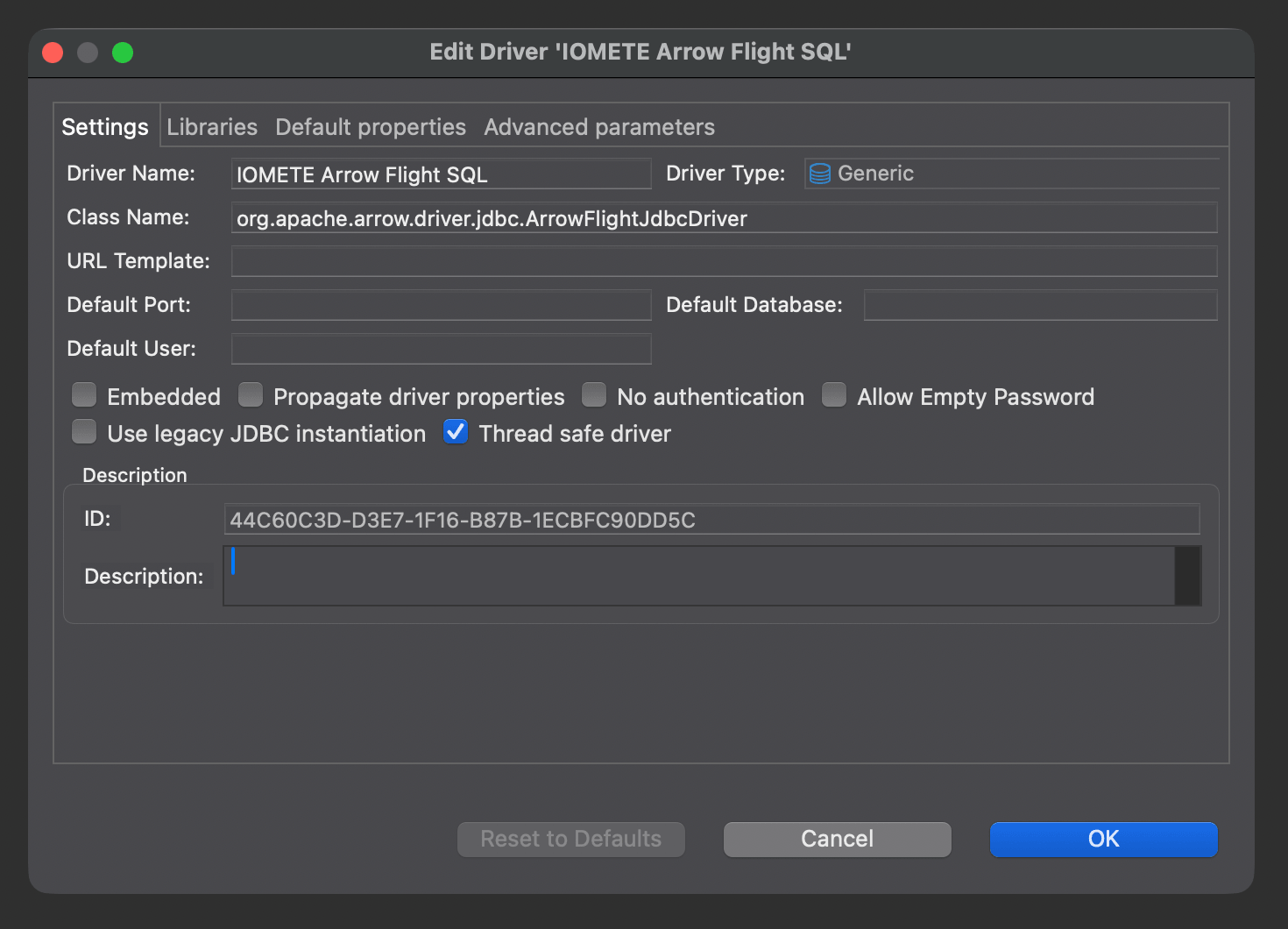

    Driver Settings tab with Generic type and the Arrow Flight class name | IOMETEDriver Settings tab with Generic type and the Arrow Flight class name | IOMETE

  5. Click OK to save.

Connecting to IOMETE​

With the driver registered, you can open a connection and browse your data.

  1. Click New Database Connection and select the IOMETE Arrow Flight SQL driver.

  2. Find your connection details in the IOMETE Console: Compute → select a compute → Connections tab → Arrow Flight. Copy the JDBC connection string.

  3. Paste it into the JDBC URL field (it looks like jdbc:arrow-flight-sql://<host>:443?cluster=<cluster>&data-plane=<data-plane>), then enter your credentials in the Username and Password fields below it.

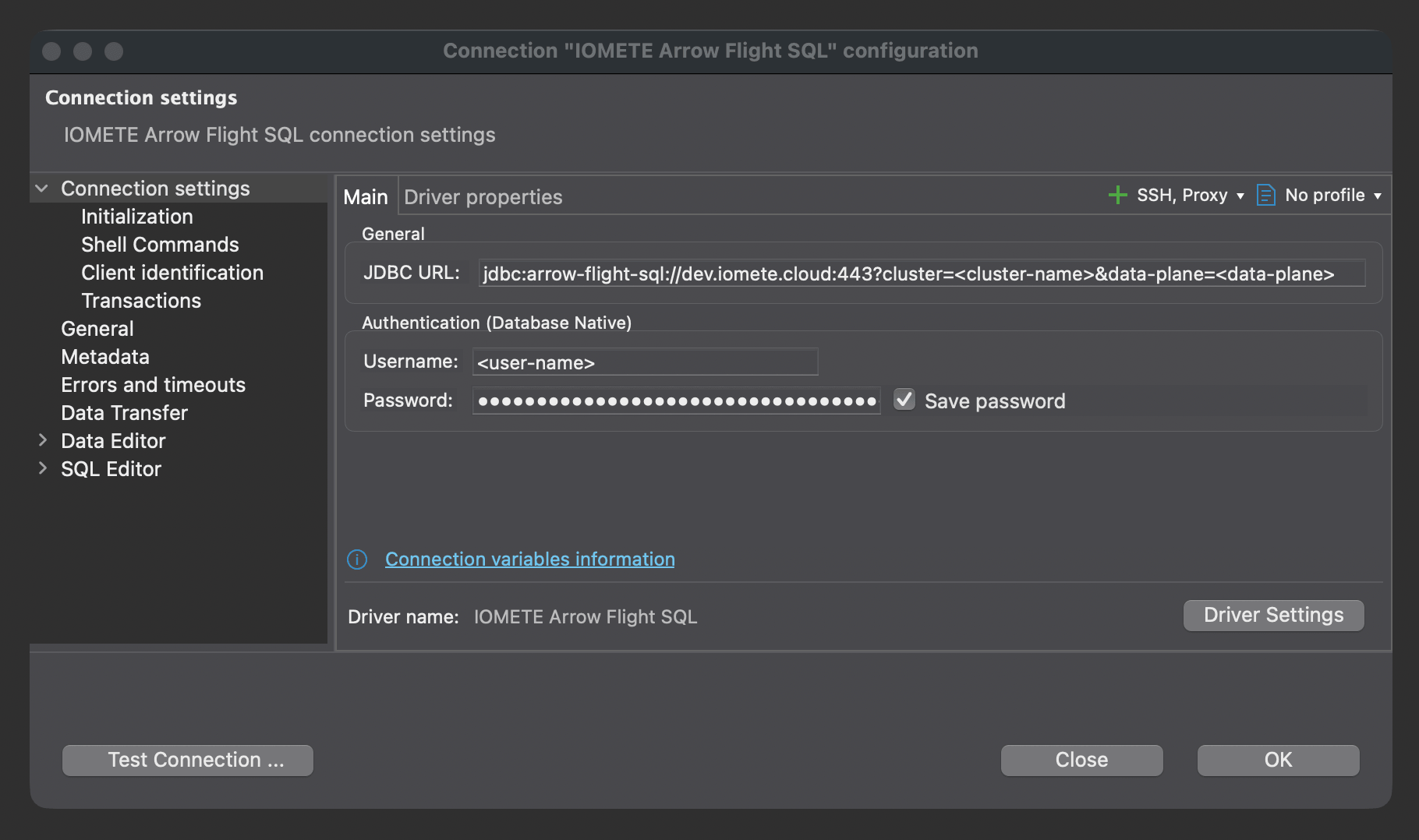

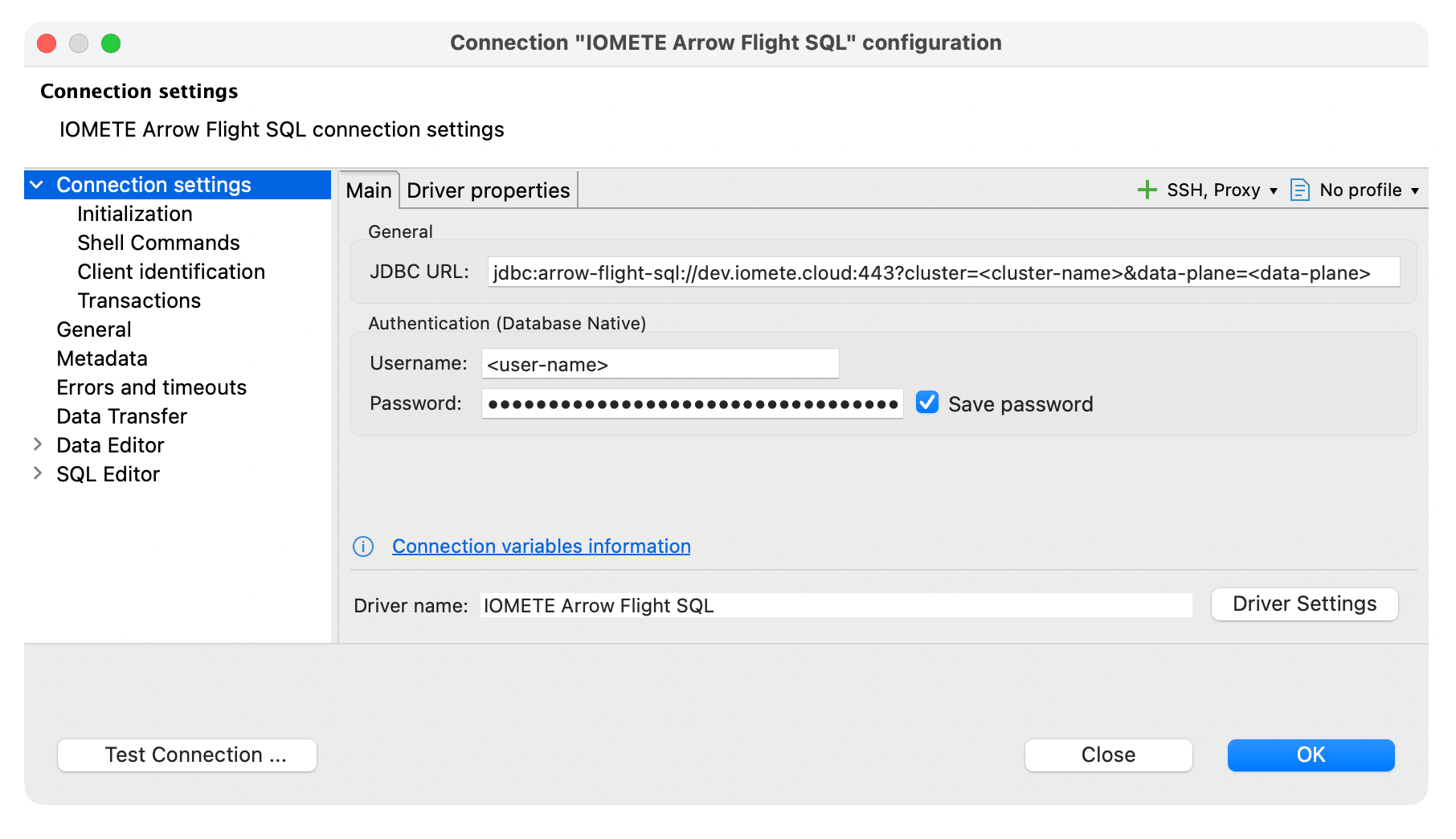

    Connection settings dialog with Arrow Flight JDBC URL, username, and password fields | IOMETEConnection settings dialog with Arrow Flight JDBC URL, username, and password fields | IOMETE
    note

    Use an Access Token generated in the IOMETE Console as the password.

  4. Click Test Connection, then Finish.

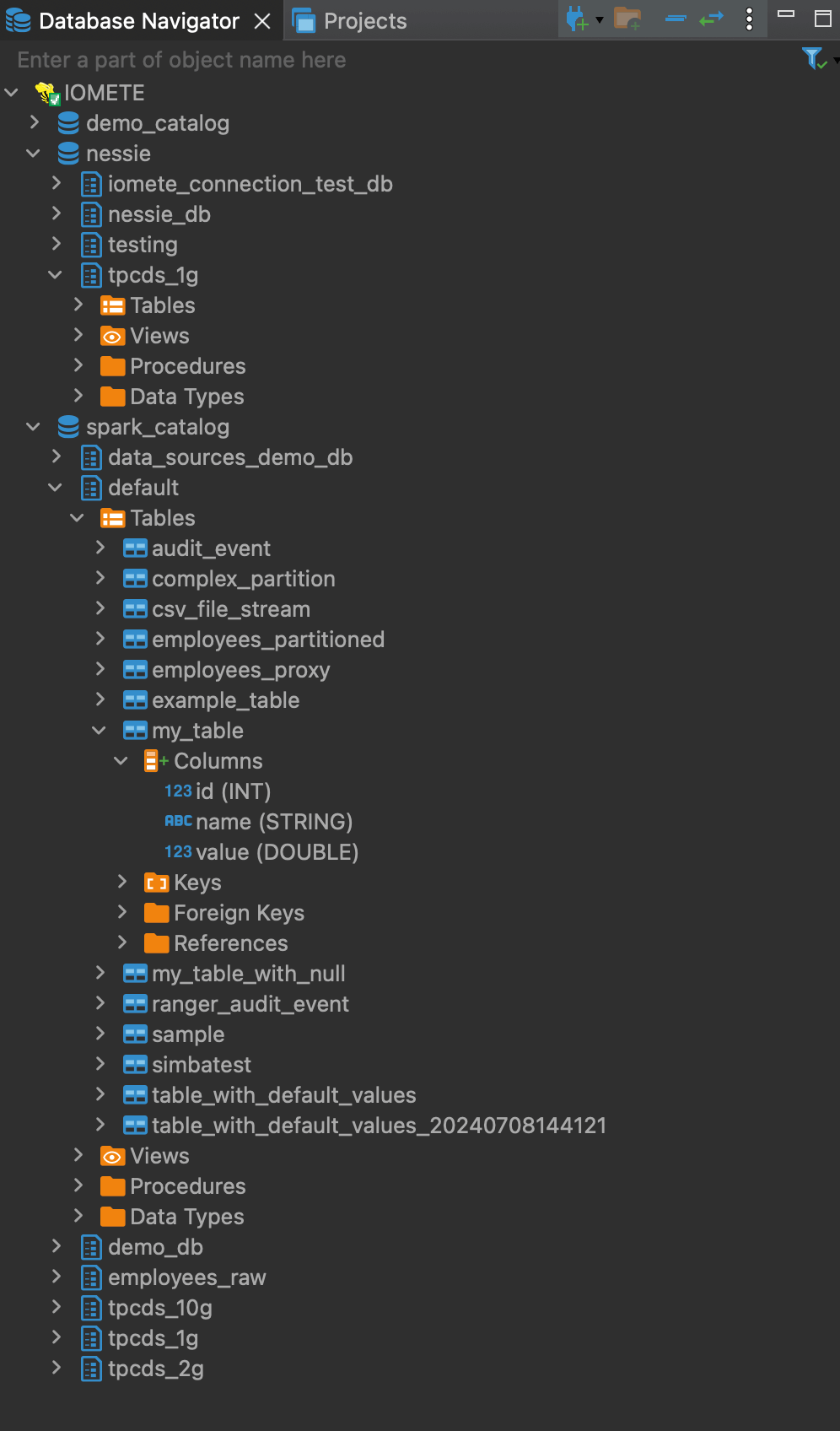

If the connection succeeds, the Database Navigator lists your catalogs, schemas, and tables so you can start querying.

Database Navigator showing IOMETE catalogs and tables | IOMETEDatabase Navigator showing IOMETE catalogs and tables | IOMETE

Resources​

Arrow Flight SQL JDBC Driver

Configure the IOMETE custom driver, including proxy tunneling, query timeout, and named parameters.

Hive JDBC Driver

Legacy HiveServer2 driver. Use only if Arrow Flight SQL is not an option.
