Arrow Flight Support

Overview

Arrow Flight is IOMETE's high-performance connectivity layer for moving query results between the platform and external tools. Built on the Apache Arrow Flight protocol, it replaces traditional row-by-row transfer with columnar, batched data streaming, delivering significantly faster and more memory-efficient reads for BI dashboards, SQL clients, and data pipelines. It ships with a custom IOMETE ODBC driver and standard JDBC support, so external engines connect directly to IOMETE Compute over a single, secure channel.

Features

• JDBC & ODBC connectivity — Connect any JDBC/ODBC-compatible client to IOMETE Compute over the Arrow Flight protocol.
• Custom IOMETE ODBC driver — Purpose-built driver enabling seamless integration with Power BI and other BI tools.
• Multi-catalog access — View and query multiple Spark catalogs through a single connection, rather than one catalog per connection.
• ArrowFetch (S3 offload) (from v3.12.0) — Large result sets export directly from Spark executors to S3, bypassing the driver bottleneck for faster, memory-safe exports of very large datasets.
• Bind variables / prepared statements (from v3.16.0) — Support for parameterized JDBC queries, including binding NULL values (v3.17.0).
• Spark UI monitoring (from v3.16.0 / v3.17.0) — Queries run via Arrow Flight JDBC now appear in the Spark UI, with a dedicated ArrowFlight SQL tab for monitoring sessions and operations.

Use cases

• BI reporting — Connect Power BI, Tableau, or similar tools directly to IOMETE for interactive dashboards on live lakehouse data.
• Large dataset extraction — Export big result sets to downstream systems, QA tools, or enterprise pipelines without hitting driver memory limits (via ArrowFetch).
• High-throughput SQL clients — Any application needing fast, columnar reads from the lakehouse.

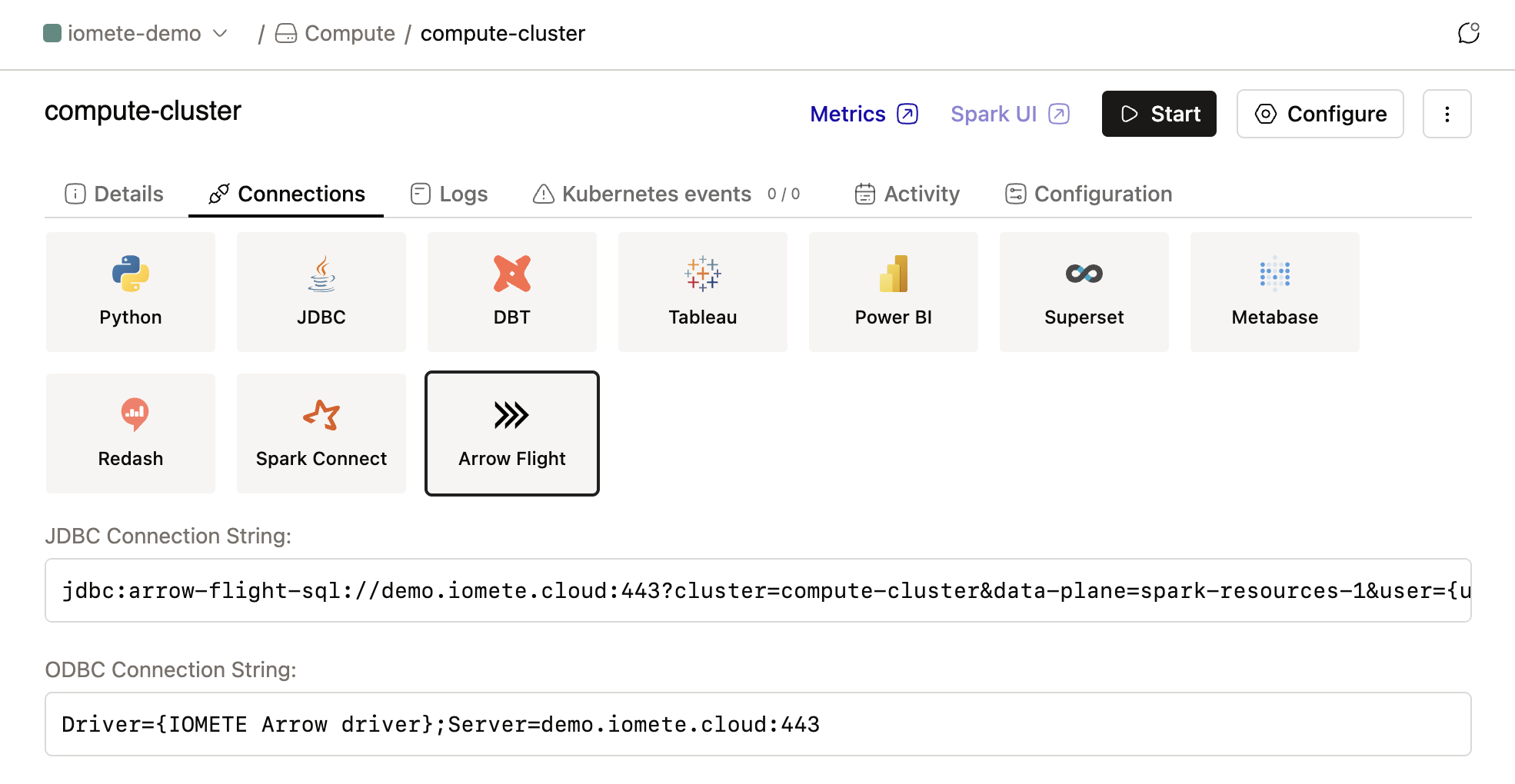

Screenshots
